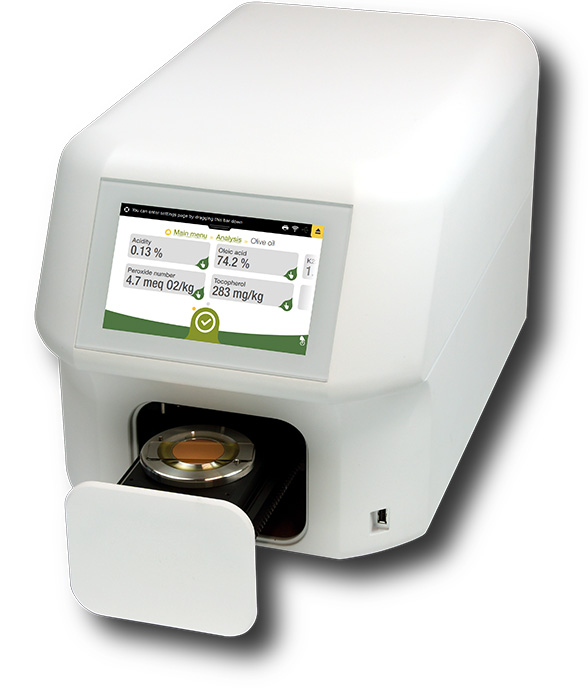

SpectraAlyzer OLIVE – Olive Oil Analyzer
Great taste comes with great recipe and great quality



The SpectraAlyzer OLIVE and OLIVE Top Window (TW) are the most advanced olive oil analyzers available for testing the most common parameters required for olive oil extraction processes.
With the SpectraAlyzer OLIVE and SpectraAlyzer OLIVE TW, olives and olive products can be analyzed throughout the entire processing chain. The most important quality parameters in whole olives, olive paste, olive oil and olive press cakes as well as in soil samples and leaves can be determined within 45 seconds.
The SpectraAlyzer OLIVE offers a very simple and convenient way of presenting samples due to a large number of sample cups, especially designed for the respective product.
If an even faster sample presentation is required, this is made possible by the SpectraAlyzer OLIVE TW. All kinds of olive products can easily be placed on the top of the device in appropriate sample cups.
The NIR method of continuous reference/sample measurement developed by ZEUTEC (double beam system) combining transflectance, transmittance and reflectance measurements is the reason for high sensitivity and long term drift stability of the olive oil analyzer instrument.
This method provides reliable multi-component analysis results within seconds for all olive and olive products mentioned above. There is no need to manually condition the sample or use extra reagents. With the SpectraAlyzer OLIVE and OLIVE TW, the olives do not have to be dried or weighed before the analysis, which leads to a significant increase in the speed of the analysis.
Key features

NIR Sample – Reference technology
like all SpectraAlyzer® instruments for high sensitive
and long term stable measurements.

Versatile sample presentation
with closed, open, viscous, slide and disposable
cups for powders, pastes, slurries and liquids.

User friendly
sample presentation and easy to operate.

Compact design
optimized for bench top or at-line application.

Touch user interface
and intrinsically mounted glass touch for straight
forward hygenic instrument operation.

Many mathematical models
for all kind of products included for quick
algorithms installation and start-up.

Webserver
web connectivity for direct instrument access
via LAN and internet from anywhere, any time
Video
Measuring Olive Oil in SpectraAlyzer OLIVE

Measuring Olive Paste in SpectraAlyzer OLIVE

Measuring Olive Oil in SpectraAlyzer OLIVE
Measuring Olive Paste in SpectraAlyzer OLIVE
Measuring Olive Oil in a SpectraAlyzer OLIVE TW

Measuring Olive Paste in an SpectraAlyzer OLIVE TW

Measuring Olive Oil in a SpectraAlyzer OLIVE TW
Measuring Olive Paste in an SpectraAlyzer OLIVE TW
Measuring Whole Olives in an SpectraAlyzer OLIVE TW

Measuring Whole Olives in an SpectraAlyzer OLIVE TW
Technical data
SpectraAlyzer OLIVE 110-A100-4
SpectraAlyzer OLIVE TW 110-A100-8
Design
For olive products and olive by-products | |
Spectral range | (800) 1400-2500 nm |
Wavelength Accuracy | <0.05 nm |
Wavelength Precision | <0.005 nm |
Dual beam system, Sample / Reference measurement | |
High signal to noise ratio | > 150.000:1 |
Large expandable internal memory for calibrations, methods and history results | |
Auto-diagnostics | |
Graphical user interface, projected capacitive glass touch panel |
Accessories
Standard calibrations | Included |
Keyboard | As optional accessory |
Barcode reader | As optional accessory |
Printer | Thermal ticket or office type printer as optional accessory |
WiFi | Wireless LAN as optional accessory |
AWX G2 software | Application worx G2 software, optional accessory |
Transflection stamp | Sampling cell for oil analysis, optional accessory |
Specifications
Screen | TFT 800 x 480 pixel |
Power requirements | min. 90 V AC (50 – 60 Hz), max. 260 V AC (50 – 60 Hz), 220VA |
Operating temperature | 5 °C – 40 °C non-condensing |
Interfaces | 1 x front USB 2.0, 3 x USB 2.0, 2 x RS232, Ethernet, Audio out |
Dimensions | Height: 310 mm / Width: 300 mm / Depth: 480 mm |
Weight | 17 kg |

Product gallery
Standard Drawer











Top Window





Accessories
Standard
Accessories
Top Window
Download flyer

specific product data sheet
