SpectraAlyzer GRAIN VISION AI-The ultimate solution for Morphological Analysis
Transforming Grain Quality Assurance with Advanced Analysis.
Discover the Future of Grain Analysis with Our Advanced AI-Driven Instrument the SpectraAlyzer GRAIN VISION AI
Presenting a fast measuring device designed for the determination of size, volume, and weight, combined with AI classification of granular materials. Leveraging the latest AI algorithms, our SpectraAlyzer GRAIN VISION AI offers advanced visual analysis software that sets a new standard in precision and efficiency.
The main goal of developing the SpectraAlyzer GRAIN VISION AI analyzer globally is to enhance the precision, effectiveness, and dependability of analyzing various food grain materials.
This supports industries engaged in researching, cultivating, harvesting, quality-assuring, packaging, trading and delivering rice, wheat, quinoa, seeds, or any other type of grains. These efforts aim to enhance food product quality, improve storage conditions and promote fairer trade practices in agricultural operations.
The captured images and/or video streams undergo preprocessing for intensity and contrast before real-time segmentation for granular material analysis using AI algorithms. Segmented particles’ size and volume are determined and classified using pre-trained classifiers and AI models.
The device achieves an analysis speed of over 1000 particles per 60 seconds on still images and a factor of five on video streams.
Multispectral illumination enhances the visibility of granular material properties. Post-analysis, samples are continuously discharged, and analytical data are processed, stored, and visualized.
ZEUTEC ensures that customers receive an easy-to-use analyser that provides absolute, accurate and reproducible results.
Experience the next level of grain analysis with our advanced AI-driven SpectraAlyzer GRAIN VISION AI. Precision, efficiency, and innovation come together to deliver unmatched performance and reliability.
Key features
Unparalleled Precision and Efficiency
Experience cutting-edge grain assessment with SpectraAlyzer GRAIN VISION AI: advanced visual AI technology for precise, non-destructive testing and detailed 3D imaging to evaluate grain quality in real-time.
Enhanced Functionality
Optimize imaging with automatic intensity and exposure control. Achieve rapid results in 60-90 seconds, handling samples from 1 to 500 grams seamlessly with built-in weighing for precise analysis.
User-Friendly Interface and Design
Effortlessly interact with the intuitive 12.1-inch TFT touch screen, offering 1280×800 pixel resolution for a bright user experience. Its compact, lightweight design (393 mm H x 570 mm W x 458 mm D, 18 kg) integrates smoothly into any laboratory environment
Advanced Imaging and Analysis
Capture high-quality images with dual RGB, 12-bit CMOS cameras at 45 fps, enhanced by multi-angle 3D multispectral LED illumination. AI-driven segmentation/classification enables precise particle analysis with seamless network/cloud connectivity for efficient data management.
Robust and Reliable Performance
Gain from high-resolution imaging (25,000 pixels/kernel, 20-micron precision) with proprietary algorithms for superior analysis. The Linux-based interface ensures security and accuracy amid varying sample temperatures.
Seamless Connectivity and Support
Enjoy versatile communication interfaces: thermal USB port, printer connectivity, and multiple USB and RS232 ports for data handling. Access data remotely via PC or mobile with web server functionality.
Versatile and Convenient Features
Effortlessly present and examine samples across 5-40°C with 80% non-condensing humidity. Operate on 100-240 V AC (50-60 Hz) or use a car adapter (12V) for flexible power options.
SpectraAlyzer CLOUD
Fuse the analytical and image data in the SpectraAlyzer CLOUD where you can monitor multiple instruments in your organisation and run comprehensive data analysis reports.
Explore cutting-edge grain analysis with our state-of-the-art SpectraAlyzer GRAIN VISION AI. Uniting precision, efficiency, and innovation, it sets a new standard for performance and reliability.
How it works

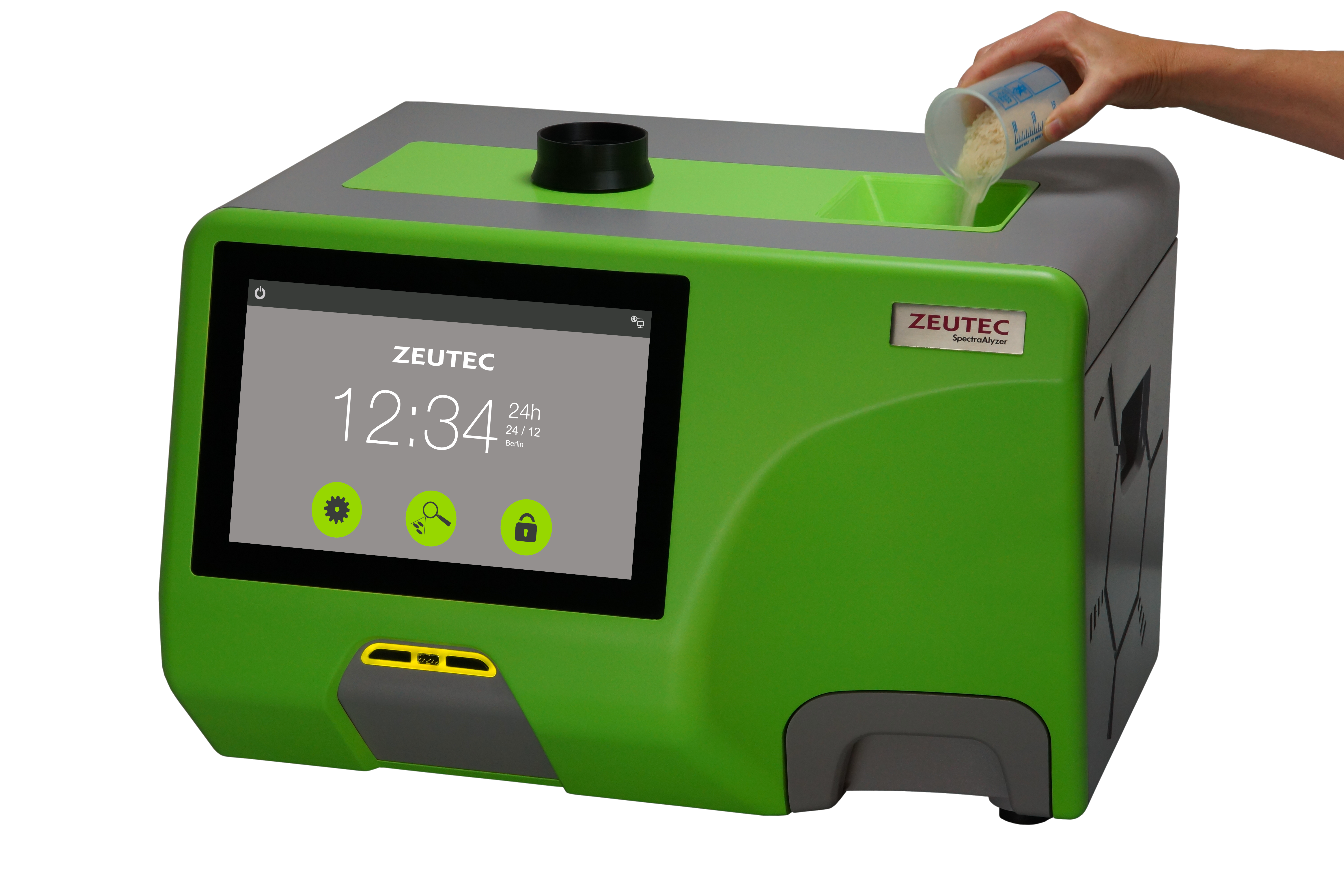

The device first weighs the granular sample and then continuously feeds it through an observation plane. Two camera systems, synchronized with multispectral illumination, record high-resolution images and/or video streams of the sample. These cameras capture images from the top and bottom, covering over 320° of the sample’s particles on a glass turntable. The system incorporates top-tier imaging technology and rapid data processing capabilities, featuring custom optics, controlled illumination, high-resolution 3D camera imaging, and advanced AI algorithms for segmentation and classification.

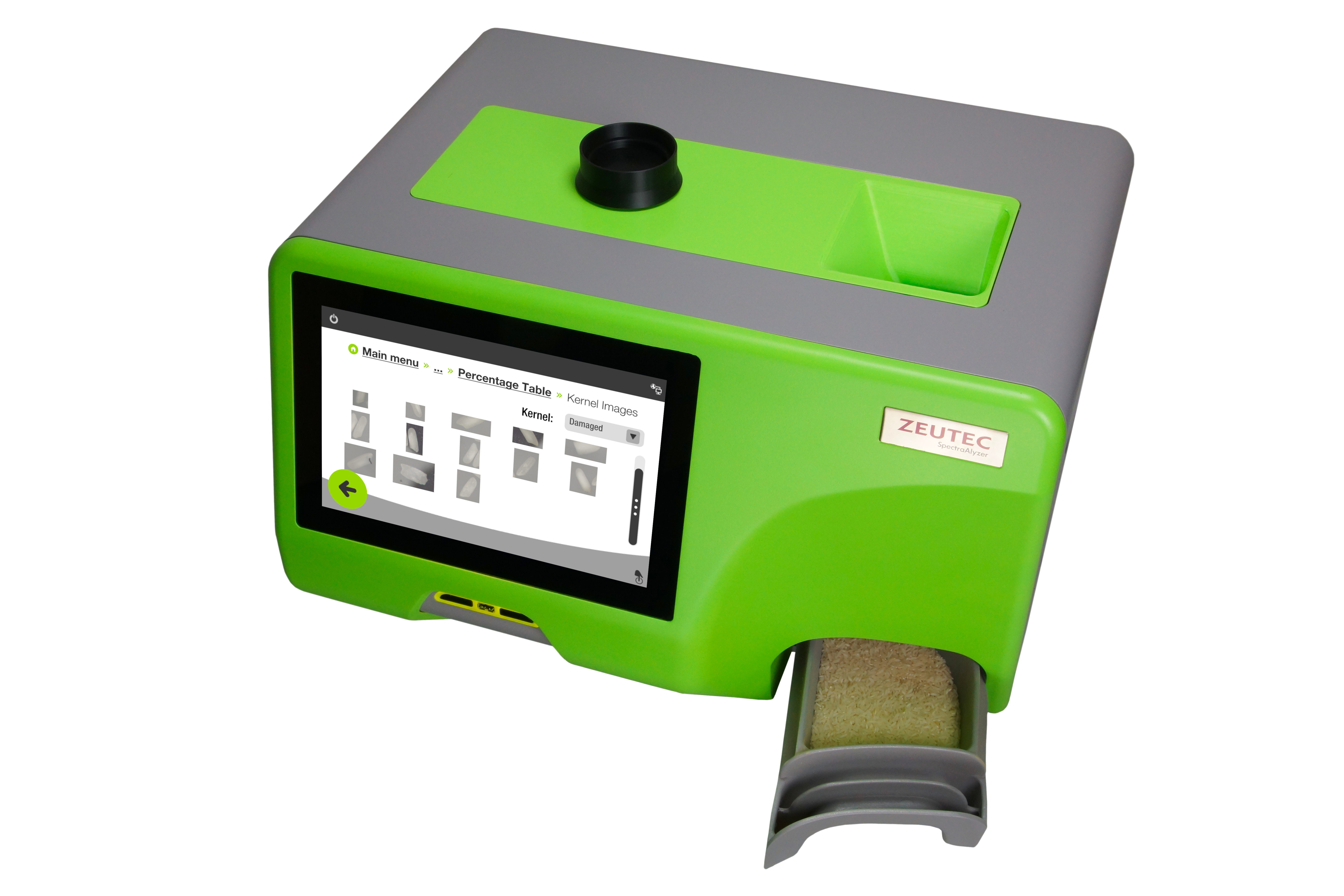

The captured images and/or video streams undergo preprocessing for intensity and contrast before real-time segmentation for granular material analysis using AI algorithms. Segmented particles’ size and volume are determined and classified using pre-trained classifiers and AI models. The device achieves an analysis speed of over 1000 particles per 60 seconds on still images and a factor of five on video streams. Multispectral illumination enhances the visibility of granular material properties. Post-analysis, samples are continuously discharged, and analytical data are processed, stored, and visualized.
Watch the movie
Technical data
SpectraAlyzer GRAIN VISION AI
Design
| Design | AI-ML based Camera Integrated System |
| Non-Destructive Assessment Technique | A non-destructive technique for the direct assessment of multiple morphological parameters of grains |
| 3D Imaging Capability | Instrument is be capable of capturing the 3D image of the grain samples approx. 360° for checking various morphological parameters like damaged, good grains, discolored etc and simultaneously display the results. |
| Size and Area Calculation | Determination and calculation of grain size (LxB), area (volume/weight) |
| Inbuilt Weighing Scale | Inbuilt weighing scale to determine the correct sample weight |
| Measurement | Transmission |
| Sample presentation | Automatic |
| Sample Feeding and Analysis | The instrument has the capability for automatic and uninterrupted sample feeding and analysis, accommodating sample sizes ranging from 1 gram to 1000 g. |
| Measuring time | Under 2 minute (approximately) |
Display
| Screen | 12.1″, TFT 1280×800 pixel |
| User Interface | 1000 cd/m², PCAP Glass Touch |
Specifications (Software and Hardware)
| Operating temperature : | 5-40°C, 80 % non condensing |
| Software/database storage | SD card, 128 GB |
| Interfaces | 1x front USB, 3x back USB, 2x RS232, Ethernet |
| Input voltage / rated current | min. 100 V AC (50 – 60 Hz), max. 240 V AC (50 – 60 Hz), 1.7A (Provision for Car Adapter 12V) |
| Protection | IP50 (dust and humidity) |
Dimensions
| Dimensions | Height: 393 mm / Width: 570 mm / Depth: 458 mm |
| Weight | 18 kg. |
Modules
| Camera module | Two RGB 8.3-megapixel, 12-bit CMOS cameras operating at 45 frames per second. High-resolution cameras will capture approximately 25,000 pixels per kernel resolution, optimizing the extraction of valuable information with efficiency. |
| Optic Module | Includes Prism polarized film/lens and RGB backlight to capture better quality images with less background noise. |
Options
| Software package, Barcode reader, Keyboard, Printer. |
| Remote access to data on the instrument (via PC/mobile) with the feature of a web server or cloud connection. |
